A 3-sided, or bay-style fireplace, the Trisore 140, direct vent gas fireplace, features a frameless built-in design with glass on three sides for a fresh, modern look.
Element4 fireplaces feature unique Fire Media options, which sit directly in the flames. Choose between log set, fire glass, white Carrara pebbles, grey stones or our new Landscapes Series of pre-curated media mixes. Scroll down to see them all.
So what sets this fireplace apart? The Trisore 140 features designer trim, improved tube-style burners, and the E-Save Control System which can save up to 45% on fuel consumption, making for a stylish and efficient fireplace. Moreover, all Element4 fireplaces can be fitted for propane.
This model comes standard with an InvisiMesh safety screen; however, it can be upgraded to include a Glass Safety Barrier for the same protection and a 100% clean and trimless appeal.
The Trisore 140 is produced by Element4 B.V., the award-winning fireplace manufacturer from the Netherlands, and is imported and distributed by European Home for installations in North America.
The Bidore 140 shares the same burner system as the Trisore 140
Burner Systems Available for the Trisore 140
DOUBLE BURNER
The double burner guarantees a beautiful fire experience because the fire is spread over the full depth of the fireplace. In addition, you can easily switch off one of the burners for even more control of the heat and the flame picture.
QUAD BURNER
The Quad Burner has five burners and four distinct flame settings so you can drastically adjust the flames and the heat intensity based on your preferences.
Paired with the natural log set fire media, this system creates a truly realistic fire with unmatched depth, controllability and an alluring warmth.
Element4 is the responsible fireplace company
With the multi-burner system and the eco-mode, you can enjoy your fireplace as a room heater and know that you are being as efficient as possible. Why use more gas than you need to? Why heat your whole house if you don’t have to? Area heating with great design, from a company that considers environmental issues. Some companies are ok to send the heat outside – not Element4 they are responsible when it comes to OUR environment.
Learn more.

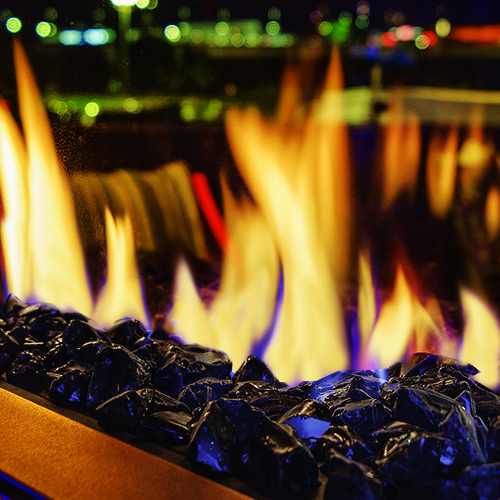

Fire media.
Order Fire Media Sample Kit
Safety Barriers
By regulation, all fireplaces with a glass front must come with a safety barrier installed to prevent direct contact with hot surfaces. The good news is you now have multiple options to keep your fireplace safe without compromising its clean, modern apeal.
World’s First Quad Burner
The Quad Burner system by Element4 features five separate burners and four flames settings. Now more than ever, you have complete control over your gas fireplace.
Power Vent System
In some installations, where venting runs are particularly long, a power vent system may be needed. European Home offers both internal and external power vent systems which are available for purchase and approved for use with the entire line of Element4 fireplaces. With a power vent system, vent runs of up to 100' can be achieved.
Accessories.
Trisore 140 3-Sided Gas Fireplace in the wild.
European Style. All American Hygge.
If you or your employees are tired of the American rat race — add a little Scandinavian hygge to your work space. Mithun Agency recently included the Trisore 140 fireplace by Element4 in their new space in Minneapolis, MN. Mithun’s reason for including this fireplace comes from the deep Scandinavian heritage of the agency. Andrew […]
Specifications
- Gas Type
- Natural Gas or Propane
- Burner
- Double Burner or Quad Burner
- Double Burner Heat Output (Natural Gas)
- 13,650 - 38,200 BTU/hr
- Double Burner Heat Output (LPG)
- 11,950 - 34,100 BTU/hr
- Quad Burner Heat Output (Natural Gas)
- 15,000 - 71,000 BTU/hr
- Quad Burner Heat Output (LPG)
- 13,000 - 64,000 BTU/hr
- Viewable Opening
- 55-1/8" W x 16-9/16" H
- Framing
- Please refer to the Installation Manual for more information
- Approximate Fireplace Weight
- 285 lbs.
- Venting
- Requires 5" x 8" direct vent
- Flame Adjustment
- Yes
- Standard Interior
- Anthracite
- Optional Designer Interiors
- Reflective Black or Concrete Style
- Options
- Wall Switch
- Remote Control
- Yes
- Electronic Ignition
- Yes
- Certification
- ANSI Z21.11.50a-2008, CSA 2.22a-2008, CSA 9.4 - Vented Gas Fireplaces
- Mass Approval Code
- G3-0116-219
- Efficiency
- 90%
Trisore 140 3-Sided Gas Fireplace installations.
